Scanning For Bio-Threats

Some countries are doing a miserable job containing the spread of H1N1 virus, thanks to lack of infrastructure. Altho Swine Flu is via human transmission, can you the fathom the amount of devastation bio-contamination can cause via the imports and exports of agricultural, meats and like traded goods from such countries? Container Scan is probe that tries to detect bio-organism threats present in a shipping container. It identifies a contaminated shipment without having to open the container doors, thereby reducing potential risks.

Need to give you the exact background so here’s the original stuff:

Concept:

Scientists had developed an air sampling technology that could detect the presence of unwanted organisms by detecting VOC markers (Volatile Organic Compounds) at the molecular level; but they did not have a workable design or a business proposition to wrap around the technology.

The design team studied the flow of shipping containers using time in motion analysis methods, and arrived at a system proposition that permitted the taking of air samples within the existing logistical movements.

Model sampling tools were made and their use verified by physical testing in actual working conditions using ‘Day in the Life’ analysis methods. Emphasis was placed on usability, UI feedback, end user safety and satisfaction with the devices.

The success of these tests then allowed the design team to undertake detailed concept design work involving the refinement of exterior enclosures, internal mechanisms, sample cartridges, power supply systems, data collection, scanning and communication modules, PCB’s, software, harnesses and test rigs.

End Result:

A full working prototype was built, and the technology was tested at an approved de-vanning site. Twenty random spiked containers were sent from all around the globe to the facility, containing samples of untreated timber. Container Scan successfully intercepted all of them, plus one extra contaminated shipping container that was not part of the test!

End users loved having a ‘weapon’ to use in their job that looked the part and physically expressed their desire to probe, detect and intercept the bad guys. Having a high-tech tool was a completely new experience for these officers and at the end of the trial they were reluctant to return the prototype.

Designers: Shuan Crail, John Ju Seok Lee, Doug Ollivier, InFact Mech & Tech Team

Container Scan Bio-Organism Threat Detection System by  Shuan Crail, John Ju Seok Lee, Doug Ollivier, InFact Mech & Tech Team

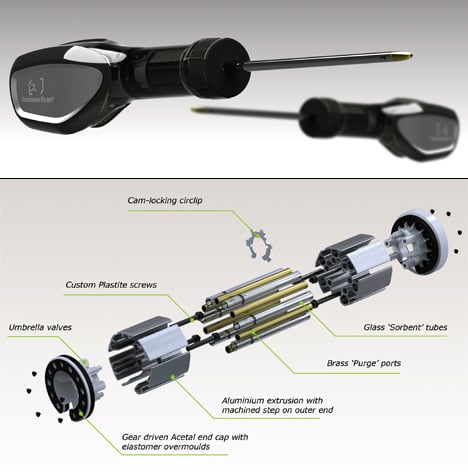

container_scan2

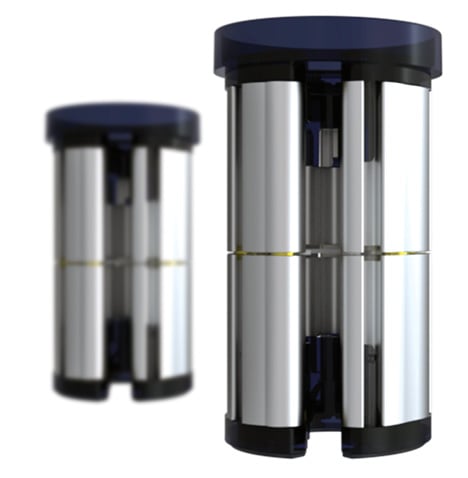

container_scan3

container_scan4

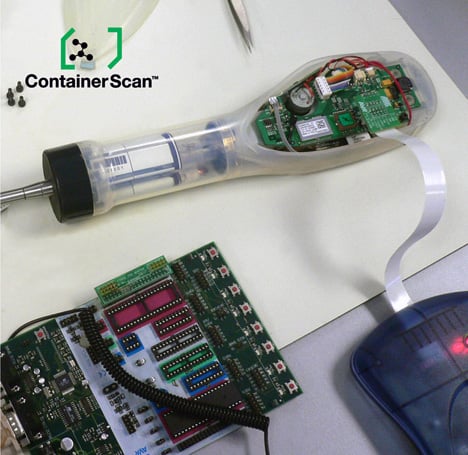

container_scan5

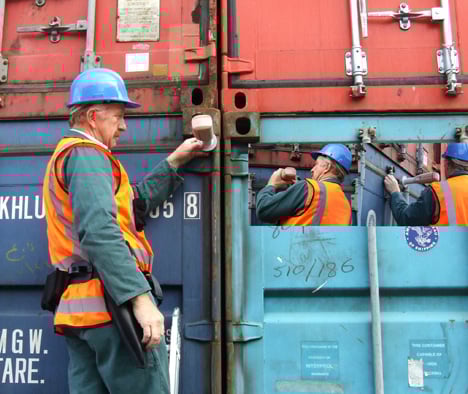

container_scan6

container_scan7
