Holy Smoke!

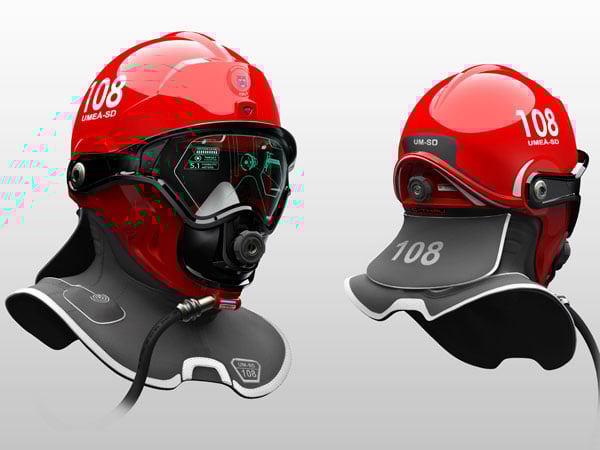

C-Thru is a helmet that is designed to help firefighter walk through dense smoke during smoke diving search and rescue missions. Time constrains of six minutes per mission, makes it imperative that the gear is optimal. C-thru gives them the edge thanks to the wire-frame vision of the interior geometry, surrounding the smoke diver. Using technological enhancements, the helmet provides a visual map of the interiors so that it becomes easy for the firefighter to locate the victims.

This is how it works:

  • C-Thru’s vision system integrates many technologies to aid firefighters, such as a head-mounted projection display, optical thermal camera, cloud computing, selective active noise cancellation and target acquisition.
  • The optical thermal camera captures the imaging of the surrounding area and sends the data to the smoke diver leader’s handheld device.
  • The data is calculated there and sent back to the helmet.

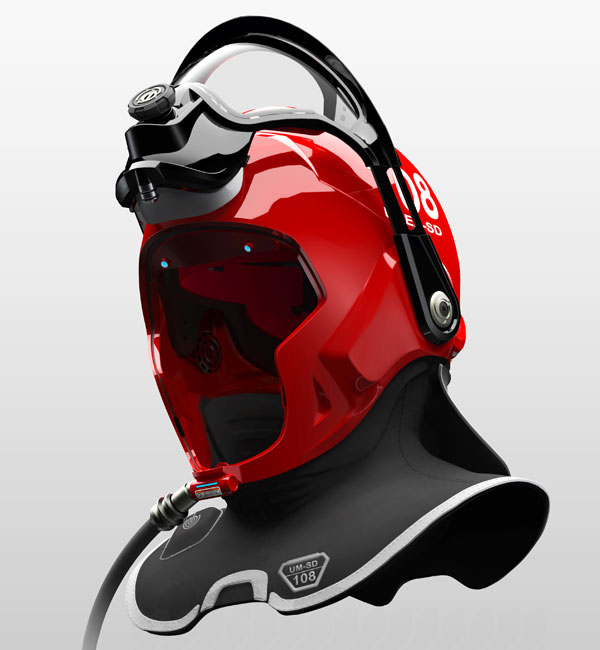

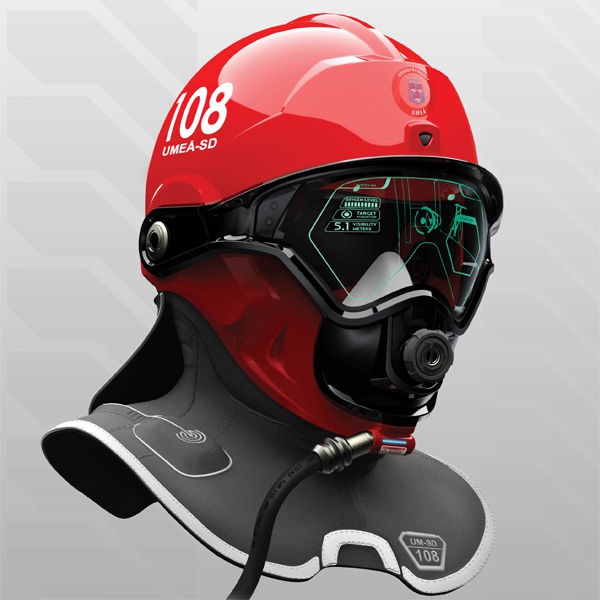

  • Newly generated 3D wire-frame data is projected by the head-mounted projectors through the retro-reflective front visor of the helmet.

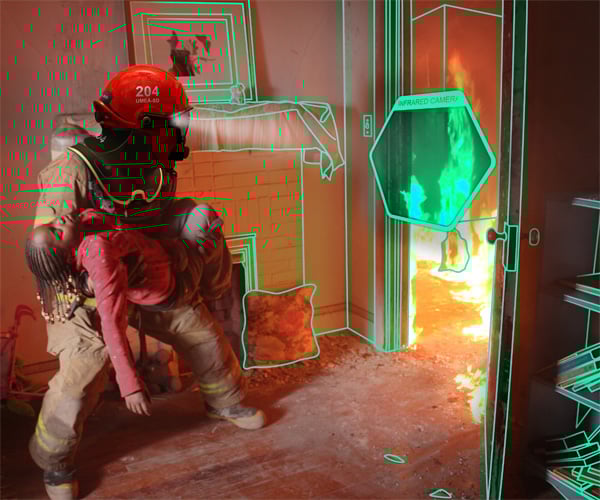

  • This wire-frame outline of their surroundings helps firefighters find a path through the building and locate victims.

Designer: Omer Haciomeroglu

53 Comments

  • uri says:

    where can we buy this helmet ?
    C-Thru Smoke Diving Helmet

  • German Perez says:

    This is awesome!! Its way overdue, the C-thru addresses literally every visibility and communication issue that firefighters experience every time we go into a fire. Now the only obstacle will be getting your dept. to find it in the budget to buy them. This would surely make the job of firefighting much quicker, efficient, and thorough. Thank You.

  • Nathan says:

    Technologies referenced in this design are fairly off from what would be required to make this device workable or desired by FDs and other Rescue Units. Also, in the scope of this project I believe it was not correctly identified as to the goal of the “Smoke Diver” in his/her 6 minute limited mission. The goal in this case is visual assistance, victim locating assistance, and hazard identification. Definition of constraints: time, heat, smoke (visual as well as heath), humidity, potential physical impacts, communication limitations, data processing, and visual presentation. In the case, although the idea is a good one and addresses a need the technologies identified would not work. DARPA programs and recent developments by Google are more closer aligned to this idea.

  • Matt says:

    It’s about time! Win win guys. Just make it cheap enough that we can afford it. You just may have changed the history or the service

  • Mark P. says:

    I agree.

    It would be especially nice if it didn’t fog up the second you don it in the winter.

    Too bad our department could probably never afford them…

  • dist says:

    Nice looking helmet and covers what a lot of FD’s require, but there is one thing that is not shown in the graphics; how is it powered? You will need a large battery to power all these different components and I also fear this could fail unless they have thought how to minimize the fogging up of the viewer.
